Performance Electric & Gas Go-Karts for Commercial Tracks
63 cc · 212 cc · 230 cc family
A family of petrol off-road karts — from a light 63 cc two-stroke family machine to a 212 cc four-stroke with CVT and a 230 cc shaft-drive model with four-wheel independent suspension.
| 63 cc variant — engine | 63 cc two-stroke, air-cooled, with automatic reverse |
|---|---|
| 63 cc variant — power | 1.5 hp standard (1.8 kW option) |
| 63 cc variant — top speed | 45 km/h · 1.2 L tank · up to 3 hours endurance |
| 63 cc variant — chassis | Front double A-arm suspension; rear anti-roll bar with four-link straight axle |
| 63 cc variant — drive | Chain drive, T8F chain, 56 links · pre-mixed fuel 1:50 · pull start |
| 63 cc variant — weight | 60 kg net · 150 kg load · 8-inch tyres front and rear |

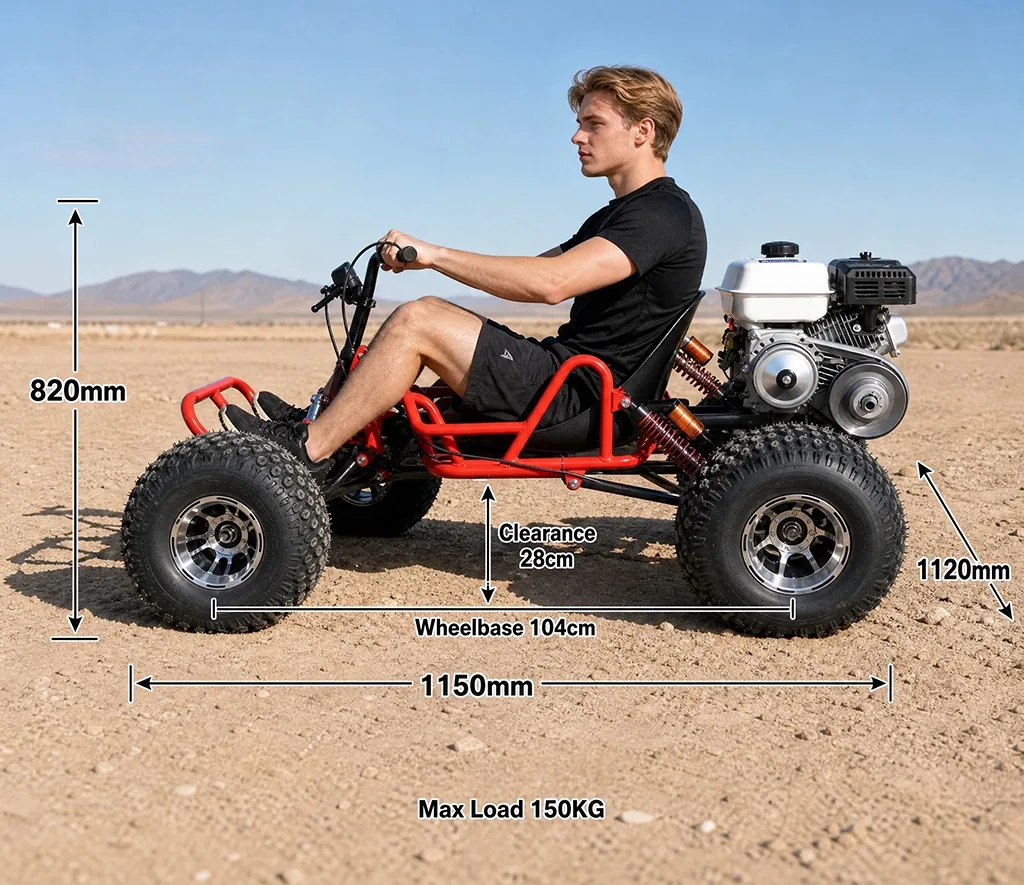

| 212 cc variant | 212 cc four-stroke with CVT automatic transmission · wheelbase 1040 mm · ground clearance 280 mm · 150 kg load · 10-inch steel or aluminium wheels |
| 230 cc variant — engine | 230 cc single-cylinder oil-cooled four-stroke · electric start · shaft drive |
| 230 cc variant — performance | 60 km/h · 15 L tank · approx. 3 L/100 km |
| 230 cc variant — suspension | Four-wheel independent suspension with hydraulic damping |
| 230 cc variant — brakes | Four-wheel hydraulic disc brakes |
| 230 cc variant — tyres | Front 23×7-10 / Rear 22×7-10 on 10-inch spoke hubs |
| 230 cc variant — size | 2550 × 1550 × 1550 mm · 355 kg net · 400 kg gross · 300 kg load |
| 230 cc variant — gears | One forward, one reverse, one neutral |
| Options | Aluminium alloy rims and rear hydraulic braking available on selected variants |
Specifications reflect current production and may be updated. Please confirm details at the time of order.
Choose a light 63 cc machine for younger riders, a 212 cc CVT for general rental, or the 230 cc shaft-drive model for full-size off-road use.
Double A-arm front and independent four-wheel suspension on the larger models soak up ruts instead of your staff's afternoons.
Wide off-road tyres and 280 mm ground clearance on the 212 cc variant for grass, gravel and sand tracks.
Tell us your market, target fleet size and delivery port, and we will come back with configuration, delivery plan and pricing for the All-Terrain Off-Road.
